H265 5MP Security IP Camera Wifi PTZ Dome Full Metal 5X Auto Zoom Humanoid Tracking 1080P POE CCTV Two Way Audio SD TF Card Slot
KSh 103,419.45 – KSh 110,705.40
CompareDetails
- Megapixels: 5mp
- TF Card: None
- Power Supply: Normal
- Storage: None
- Installation: Ceiling
- Color: White
- is_customized: Yes
- Audio Output: 1CH RCA
- Minimum Illumination(Lux): 0lux (IR ON)
- Viewing Angle : 360°
- Video Compression Format: H.264,H.265
- IR Distance(m): 20-30M
- Dimensions (L x W x D)(mm): 13*15*15CM
- Power Supply(V): DC12V 1-2A
- Alarm Action: Local Alarm,FTP Photo,Email Photo
- Power Consumption(W): DC12V 1-2A
- Supported Mobile Systems: Android,IOS
- Sensor Brand: SONY
- Special Features: Vandal-proof
- Sensor: CMOS
- Model Number: LY265-MD5MP-5X-WIFI/P
- Supported Operating Systems: Windows 98,Windows 7,Windows 10,Windows XP,Windows 8,Windows Vista
- Lens (mm): 2.7-13.5mm
- Connectivity: IP/Network Wireless
- High Definition: 5.0 Megapixels
- Style: Dome Camera
- Brand Name: lyvnal
- Origin: Mainland China
- Certification: CE
- Smart home platform: Other
 |
 |
 |
|
 |
 |
 |
 |
What Is The H.265?
The Newer decoding mode.Lower Bandwidth
More Clear , HD resolution offer you best image quality in lower bit rate.
Save more storage space,it can reduce 40%-50% file size,save your storage space and reduce your purchase cost.
HD 5MP IP Camera
5 megapixels ip camera
Sensor:1/2.8″ SONY IMX335
First stream:5MP (2560×1920), 4MP (2560×1440) can be set
Second stream:720P (800×600 or 640×480), 720P (800×448 or 640×352) can be set
Frame Rate:1-20FPS
Smart IR-CUT Day & Night
This camera uses 2pcs high -power infrared array Leds.
The range of infrared night vision is 20-30 meters.
Color image during the day.
Black and white image at night & infrared lights on
Two Way Audio Camera
Built-in microphone records what people say, make it authentic with sound video recording;Built-in Loud Speaker, Support Two Way Audio Talk Back.
High-power speakers. Loud and clear voice.
Video Shade
On the screen of the camera. You can cover some areas. Avoid violations of privacy.
A maximum of 4 areas can be blocked. The area size can be adjusted.
This function is suitable for the camera fixed orientation. If the camera moves the position. You need to re -adjust.
Please set this feature through the browser.
Motion Detection Alarm& Smart AI Humanoid Alarm
Four areas freely adjust the motion detection area
Support sending alarm pictures to email.
Support sending alarm pictures or video to FTP service
Support sending alarm pictures or video to SD card
Support mobile APP alarm push
Smart AI Humanoid Alarm
Note: Motion detection alarm. It will detect all moving objects.
Smart humanoid alarm, only detect human-shaped moving objects
Turn on the function,camera can effectively recognize human figures and other moving objects. Reduce alarm errors
Custom alarm sound:
When the alarm is triggered. You can set the alarm sound.
The system defaults to the alarm sound and dog barking sound.
You can record any sound you want as an alarm sound. Used to warn intruders.
PTZ Auto Zoom Camera
Rotation angle:Horizon: 0 to 355°. Vertical: 0 to 100°
Free control by mobile APP or PC client. Convenient and simple.
2.7-13.5mm 5x auto zoom lens
PTZ Automatic cruise
Support 2 cruise lines. 32 preset points
The first cruise line (1-16 preset point)
The second cruise line (17-32 preset point)
Please note: Because the camera’s internal structure space is too small. This product is not recommended for long-term use of cruise mode.
Humanoid Automatic Tracking
Turn on the camera’s automatic tracking（Via APP camhi or camhipro). With humanoid detection alarm function. The camera can follow moving humanoid objects. PS:If you set up automatic cruise. Please do not turn on the automatic tracking. Avoid conflict

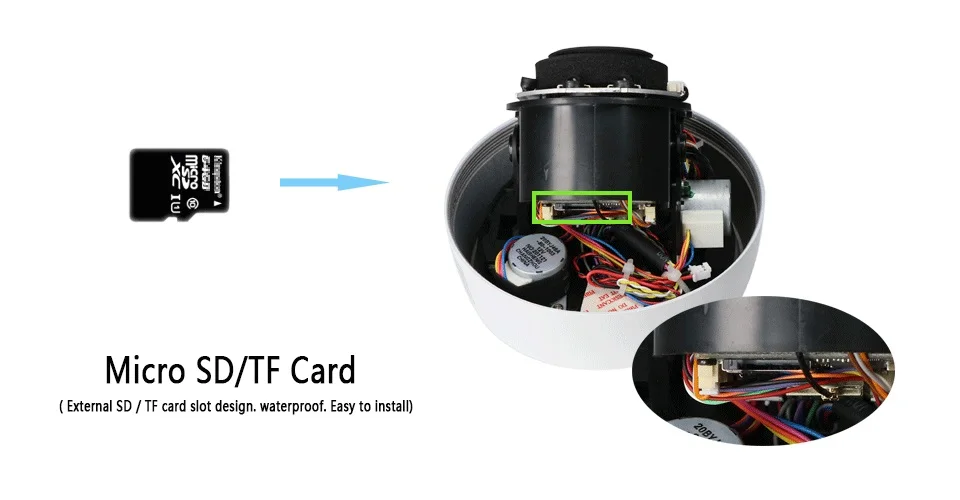

Built-in SD / TF Card Slot
The motherboard comes with an SD / TF card slot (this is a free feature)
Support Micro SD Card (TF Card) size is about 15mm * 11mm * 1mm
this camera supports up to 256GB micro SD cards with FAT32 format and Class 10 read & write speed.We recommend using 128GB
Save Videos in Micro SD Card
The SD card could choose to record continuously or record only when there is a motion detected. When the SD card is full, it will automatically cover the old video.In order to consider the alarm video upload to FTP or send it to the mailbox. The length of the alarm video is limited to 15 seconds. Ordinary videos can be adjusted to 900 seconds.
Smart Playback,Quick Retrieval Recording
Special marks for ordinary videos and alarm videos;
List mode or timeline mode;
Quickly retrieve the key video through time retrieval
P2P Remote Viewing, Anytime, Anywhere
No matter where you are, you can remotely access the security camera to see live streaming and stay connected.
Support simultaneous access from PC client and mobile APP.
Support simultaneous access by multiple users
POE Function（POE Version）
Conform IEEE802.3af Standard 48V POE.POE Wiring Pin: National standard 1/2 (+), 3/6 (-);4/5(+),7/8(-)
Transmission distance up to 100 meters （Depend on your quality of Network cable）
Connection method
1:Connect the camera to the 48VPOE switch via RJ45 port(no need power adapter)
2:Connect the camera to the plug and play POE NVR 48V(no need power adapter)
3:Alternative method: Connect the camera to the router with a network cable through the RJ45 port. Use spare DC12V power interface

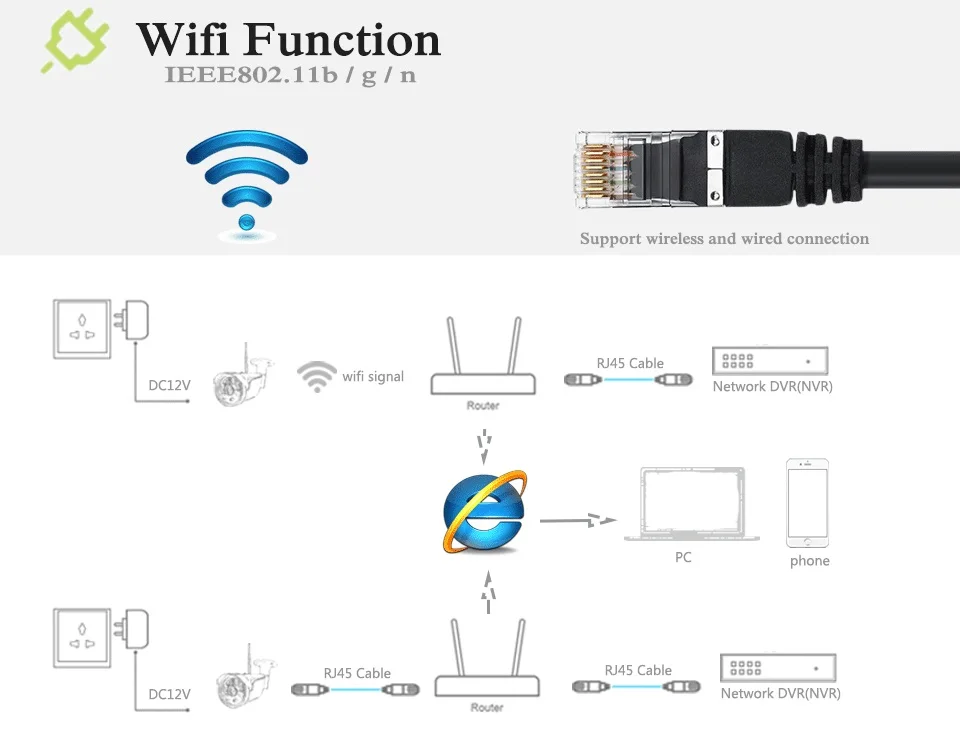

Wireless wifi function (WIFI version）
Conform IEEE802.11b / g / n Standard wireless protocol.2.4Ghz
Wireless Transmission distance about 50m
Connection Mode
1 :Connect the camera to the router via cable
2: Connect the camera to the router via wifi
Please note: if you have multiple routers in series. Please connect the device to the first router. Remote signals cannot penetrate multi-level routers.

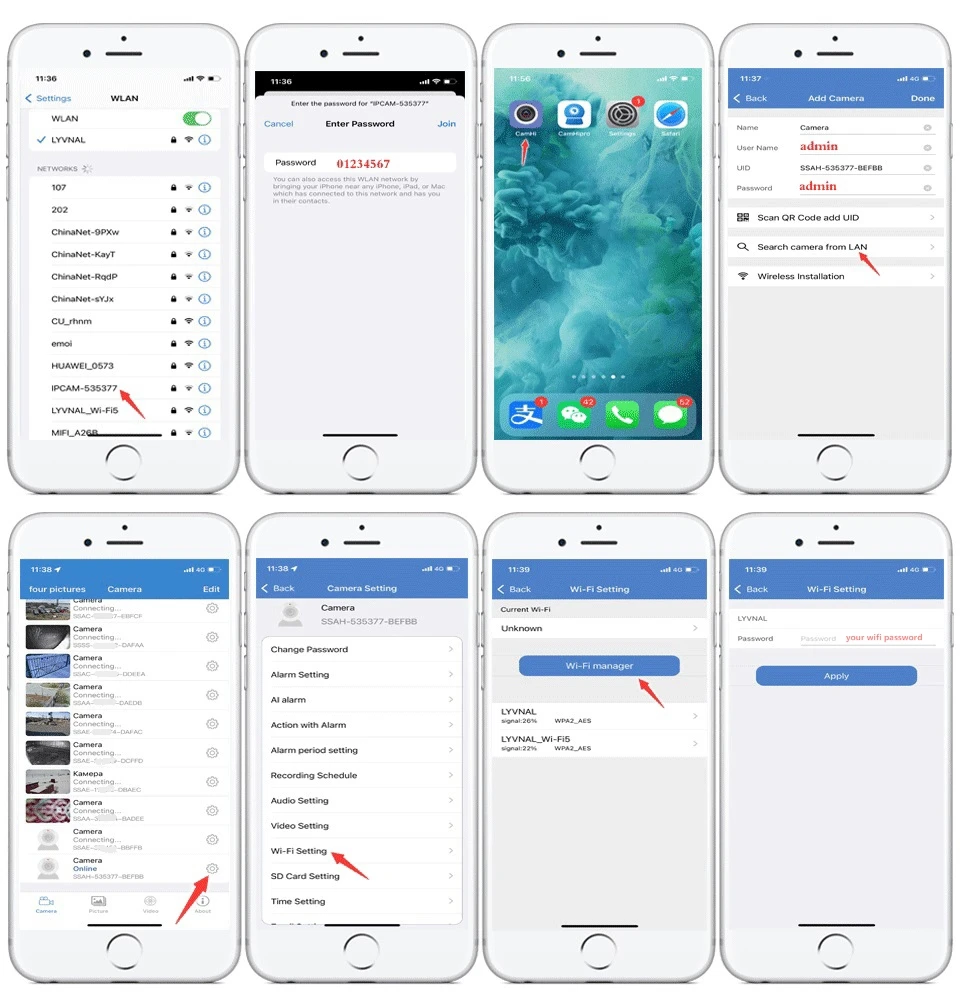

AP Function (How To Quickly Set Up Camera Wifi Function)
Camera username:admin ,password:admin
Camera hotspot:ipcam-xxx(Every camera has a different hotspot). password:01234567
Use the AP function. You can quickly set your camera to connect to your WiFi signal,No network cable required.
You just need to connect your phone to the camera hotspot. Keep the camera and phone on the same LAN.
If the camera hotspot does not appear. Please wait for a while. Or use the reset button once.
For the first time to use camera.Or after you use the reset button of the camera.Connect camera to the power adapter and antenna.Don’t need to use network cable. Camera will stay in AP mode by default.
1:Go to your phone “settings”–WLAN,Search WiFi signal.Choose the wifi hotspot”ipcam-xxx”,erery camera’s hotspot is not the same.
2:Connect your phone to the camera’s IPCAM-XXX hotspot. Password01234567.Let the phone and camera on the same wireless LAN
3:Open the App“Camhi”or”Camhipro.Add Camera.
4:Select”Search Camera From LAN”.You will find the camera’s UID,add it ,usename and password:admin.
5:When the camera shows online in LAN.Click the camera setting button. Enter “WIFI setting”.
6:Click “wifi manager”. Select your wifi signal. Enter your WiFi password. Camera connection successfully
About Camera
Signal System: PAL(50HZ) / NTSC(60HZ) automatic identification
Day& Night:Dual IR-cut filter auto switch
Video Codec:H.265/H.264 main profile and baseline
Image Settings: Brightness,Saturation,Contrast,Sharpness,Exposure,Gamma,Distortion,Flip , Mirror, WDR
OSD Settings:Time Stamp,Time show,Camera name,Name show
Privacy Mask:4 Configurable regions
Network Protocol: TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP, ect.
Access Protocol: ONVIF2.4 , i13, P2
Support P2P
Support motion detection alarm (4 areas can be adjusted, the sensitivity can be adjusted)
Support alarm picture to send E-Mail
Support Alarm picture or video upload FTP server
Support timed capture pictures to FTP server
Support Micro SD card function
Support for static IP, also supports dynamic IP (DHCP)
Support IE, Google, Firefox browser,Recommend to use IE browser.
Support multiple users to browse simultaneously
Network:1 * RJ45 10Base-T/100Base-TX ethernet interface
Power:1 * Ø5.5 RCA interface
Reset button:1*Reset button
Audio : Audio Codec: G.726/G.711
Audio input : Built-in microphone
Audio output : 1*RCA audio output interface.
Anti-thunder Level: Standard IEC61000-4-5
Operating Conditions: -20 °C ~ 55 °C Humidity 95% or less (non-condensing)
Power Supply: DC12V 1-2A
Power Consumption: 3W(daytime), 9W(night)
Housing Material:Metal
Applicable: Indoor use /Outdoor use(waterproof)
Weight:0.9-1kg

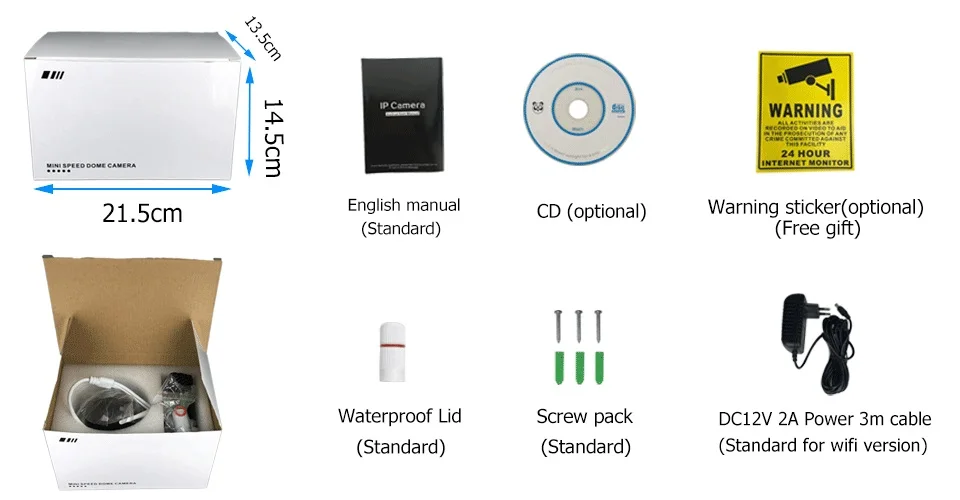

Package Includes
â‘ :IP Camera *1
â‘¡:Camera Antenna*1(POE version without antenna)
â‘¢:English Manual*1
â‘£:Screw package*1
⑤:Software CD(Optional).*1
Some countries restrict CD entry. If there is no CD. You can return to the homepage to view the download address
â‘¥:Warning stickers (gift randomly)
⑦:Power Adapter（3m cable)*1(POE version without power adapter)

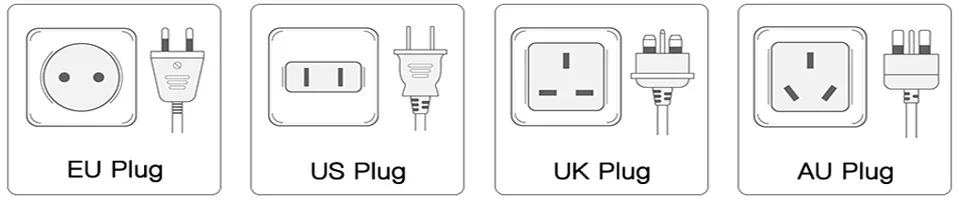

Choose the power plug you need according to the following picture
Q:What is the default ip address ,user name and password of the camera?
Default user name:admin, password :admin. The default IP address is 192.168.1.88. But now the camera uses DHCP by default. When your camera is connected to any network, its IP address will change with.
Q:What should I do if I forgot the camera password?
If you forget your password. You can use the “search tool” to search the camera IP address on the LAN. And restore the password. Or hold down the reset button on the tail of the camera for about 10 seconds. Restore the camera to the factory value.
Q:Whether the camera supports RTSP, RTMP stream?
RTSP Address: RTSP: // ipaddress: 554/11
RTMP: // iPaddress: 1935/Flash/11: admin: admin
http: // ipaddress /web/admin.html
ONVIF port:8080
Http port: 80
RTSP port: 554
RTMP port: 1935
Q:What micro card do I use?
This camera supports up to 256GB micro SD cards with FAT32 format and Class 10 read & write speed.We recommend using 128GB
Q:How to calculate the SD card storage time?
According to the default bit rate (6144 Kbps), 64GB SD can continue to store for about 1-2 days. 128GB is about 2-3 days. 256GB about 4-5 days.
However, the bit rate of the IP camera changes from the speed of the network and the meticulousness of the screen. So we often recommend using alarm storage. In this way, the SD card can continue to store it longer.
Q:Can this camera connect to the NVR of other brands?
YES ,As long as the NVR supports onvif and can support the resolution of the camera. If NVR cannot display camera images. So please pay attention to check whether the NVR and camera’s ONVIF port number is consistent. Whether the IP address gateway is consistent.
Q:Can the POE version camera use other ordinary NVR instead of POE NVR?
Yes. POE version camera can use POE NVR. You can also use other ordinary NVR. But when using other ordinary NVR, you need to provide a power supply device for the POE camera alone.
Q:Can the POE version camera use the DC12V power adapter?
Yes. The POE version camera has a spare DC12V interface. You can connect the DC12V power supply.
Q:Can the WiFi version camera use the network cable?
The WiFi camera can connect to the WiFi signal. It can also use the network cable to directly connect to the router
Q:WiFi version camera. Why is sometimes ipcam-xxx this hot spots cannot be displayed?
If the camera is connected to the network cable. Or you have set a WiFi signal once. Then the hotspot of IPCAM-XXX may disappear. If you use the reset button of the camera. Hot spots will appear again.
Q:Is the lens of this camera optical zoom or digital zoom? Is it automatic focus?
It is 2.7-13.5mm 5x optical zoom lens. During the zoom, the lens will be automatically focused. No need to focus manually.
Q:Why can’t the automatic tracking and cruise line be opened at the same time?
The automatic tracking function of the 5x lens is opened through the motherboard. Use APP.
But the cruise line is through the PTZ control board.
They are two different control systems. So please don’t use them at the same time.
